SL1300TT

Ponzio SL1300TT aluminum frames are a system of sliding windows with a minimal, easy design, with frames completely integrated on all four sides, central labyrinth of 30 mm, with retractable option. The system consists of aluminum frame profiles with thermal break mostly with double insulating glass.

System performance

THERMAL TRANSMITTANCE Uw 0.88 W/m2K
(Ug 0.6 hot runner – dim. 2 doors 4100×3900 mm)
Thermal Transmittance (Ug 0.6 warm edge)
THERMAL TRANSMITTANCE Uw 1.33 W/m2K
(Ug 1.0 hot runner – dim. 2 doors 4100×3900 mm)
Thermal Transmittance (Ug 1.0 warm edge)
PERMEABILITY TO AIR Class 4
(dim. 4100×3900 mm)
Air Permeability
WATER TIGHTNESS 7A
(dim. 4100×3900 mm)
Wathertightness
WIND LOAD RESISTANCE C1
(dim. 4100×3900 mm)
Wind load resistance
NOISE INSULATION Up to 40 dB
(dim. 2400×2100 mm)
Soundproofing

SL1600TT

The lightness of design. Lift and slide is the perfect answer for buildings with optimal energy performance without neglecting the safety aspect. It has a burglary resistance class RC2 / RC3 / RC4 according to the European standard EN1627-30

THERMAL TRANSMITTANCE
(Ug 0.6 hot runner – dim. 2 doors 3000×2300 mm) Uw 1.00 W/m2K
THERMAL TRANSMITTANCE
(Ug 1.0 hot runner – dim. 2 doors 3000×2300 mm) Uw 1.4 W/m2K
AIR PERMEABILITY
(dim. 3300×2300 mm) CLASS 4
WATER TIGHTNESS
(dim.3300×2300 mm) up to E1350
WIND LOAD RESISTANCE
(dim. 3300×2300 mm) up to C5
SOUNDPROOFING
(dim. 2400×2100 mm) up to 42 Db
BURGLAR-PROOF
 RC2/RC3/RC4

WS75IL – MINIMAL CASEMENT FIXTURES

An innovative system with a unique design that aims its line to be very similar to an iron window frame but with a reduced visual impact, thanks to the new minimal profiles, promoting maximum brightness in rooms

System performance

THERMAL TRANSMITTANCE Uw 1.0 W/m2K
(Ug 0.6 hot runner – dim. 2 doors 1230 x 1480 mm)
Thermal Transmittance (Ug 0.6 warm edge)

THERMAL TRANSMITTANCE Uw 1.3 W/m2K
(Ug 1.0 hot runner – dim. 2 doors 1230 x 1480 mm)
Thermal Transmittance (Ug 1.0 warm edge)

AIR PERMEABILITY CLASS 4
(dim. 1700×2300 mm) 2 doors
Air Permeability

WATERTIghtness E1050
(dim. 1700×2300 mm) 2 doors
Watertightness

WIND LOAD RESISTANCE C3
(dim. 1700×2300 mm) 2 doors
Wind load resistance

SOUNDPROOFING
up to 47 dB
Soundproofing

WS75FL – MINIMAL CASEMENT FIXTURES

The new window profiles allow the construction of window frames with reduced or concealed sashes.
The glass remaining flush with the frame, conderives the frame high brightness and minimal design. These new solutions are suitable for all architectural needs; every home can regain value with the new Ponzio casement windows.

System performance

THERMAL TRANSMITTANCE Uw 1 W/m2K
(Ug 0.6 hot runner – dim. 2 doors 1230×1480 mm)
Thermal Transmittance (Ug 0.6 warm edge)
THERMAL TRANSMITTANCE Uw 1.3 W/m2K
(Ug 1.0 hot runner – dim. 2 doors 1230×1480 mm)
Thermal Transmittance (Ug 1.0 warm edge)
PERMEABILITY TO AIR Class 4
(dim. 1700×2300 mm) 2 doors/wings
Air Permeability
WATER TIGHTNESS E750
(dim. 1700×2300 mm) 2 doors/wings
Wathertightness
WIND LOAD RESISTANCE C3
(dim. 1700×2300 mm) 2 doors/wings
Wind load resistance
NOISE INSULATION Up to 46 dB
(dim. 1230×1480 mm) 2 doors/wings
Soundproofing

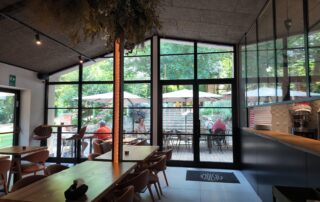

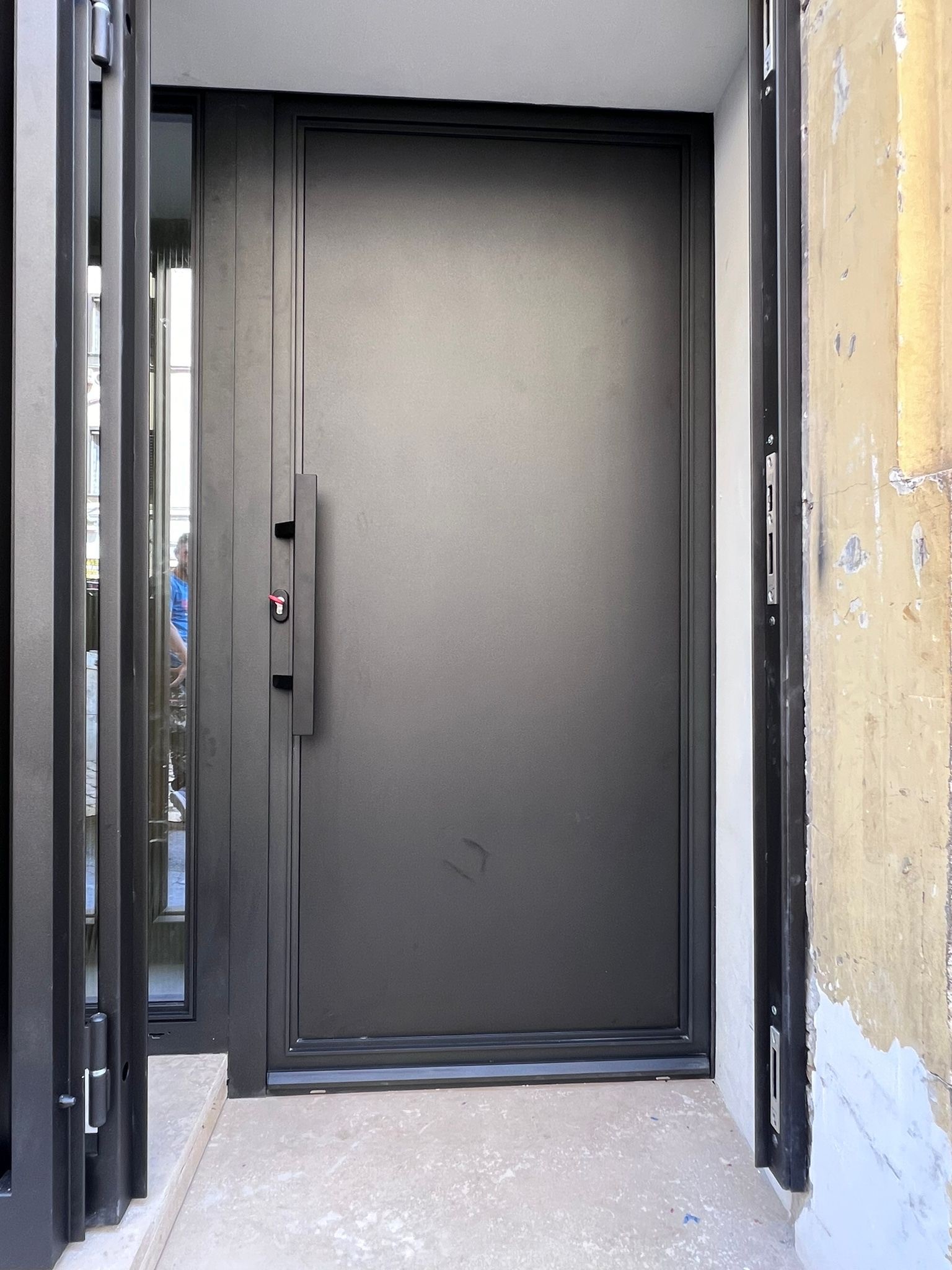

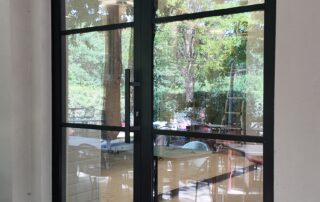

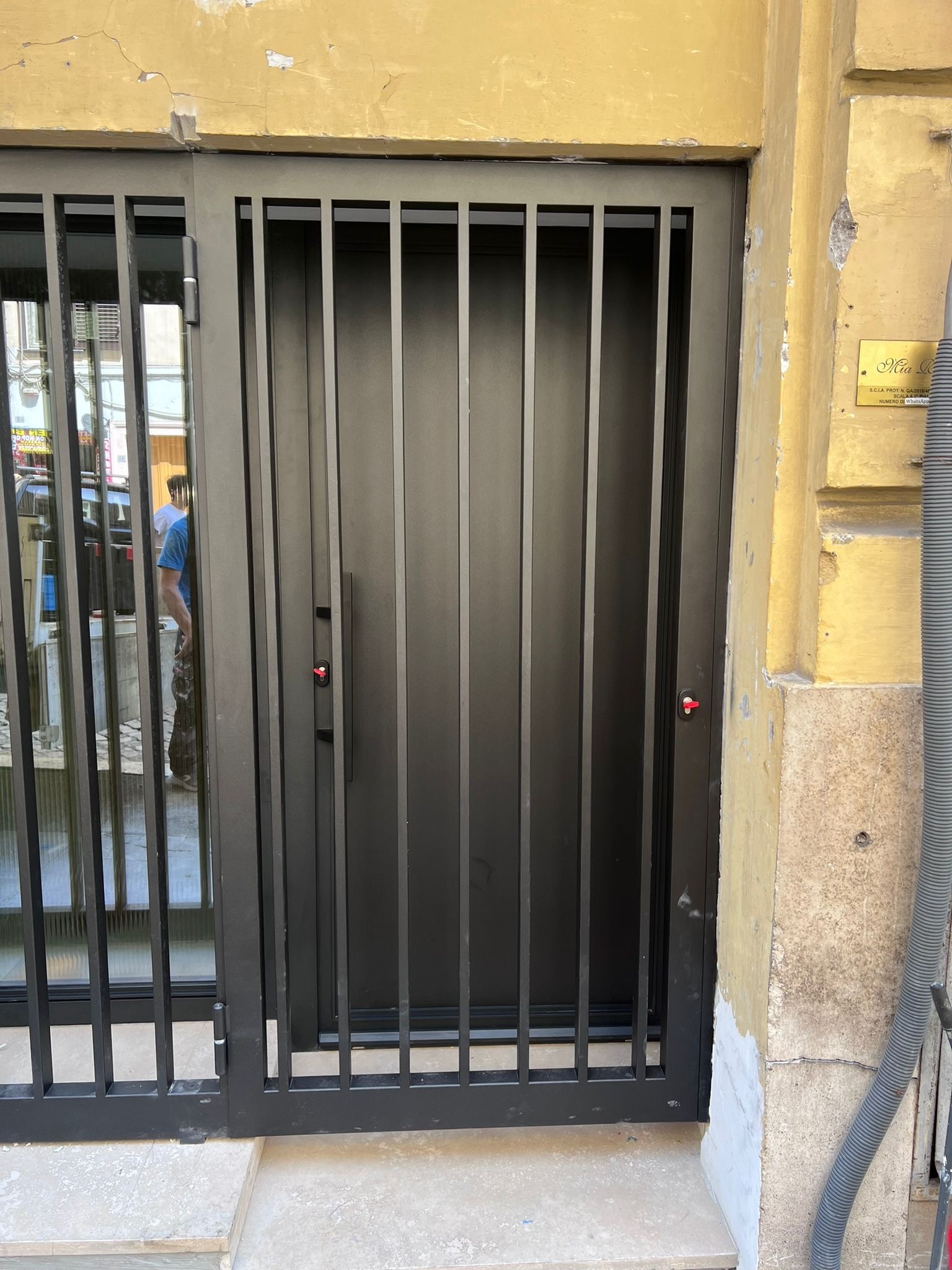

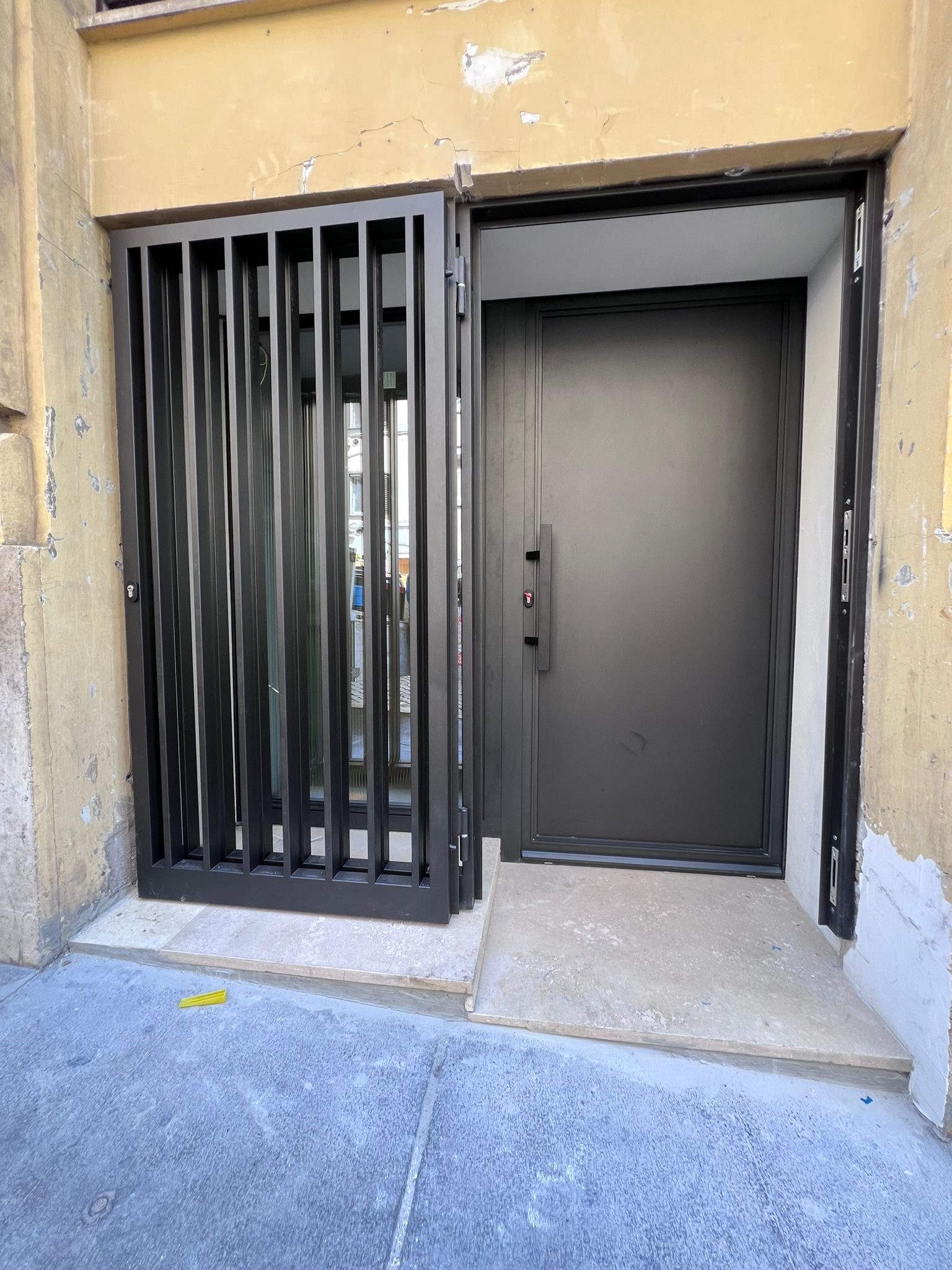

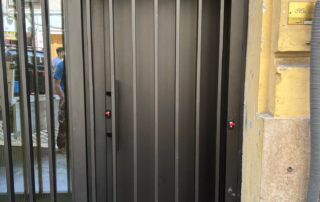

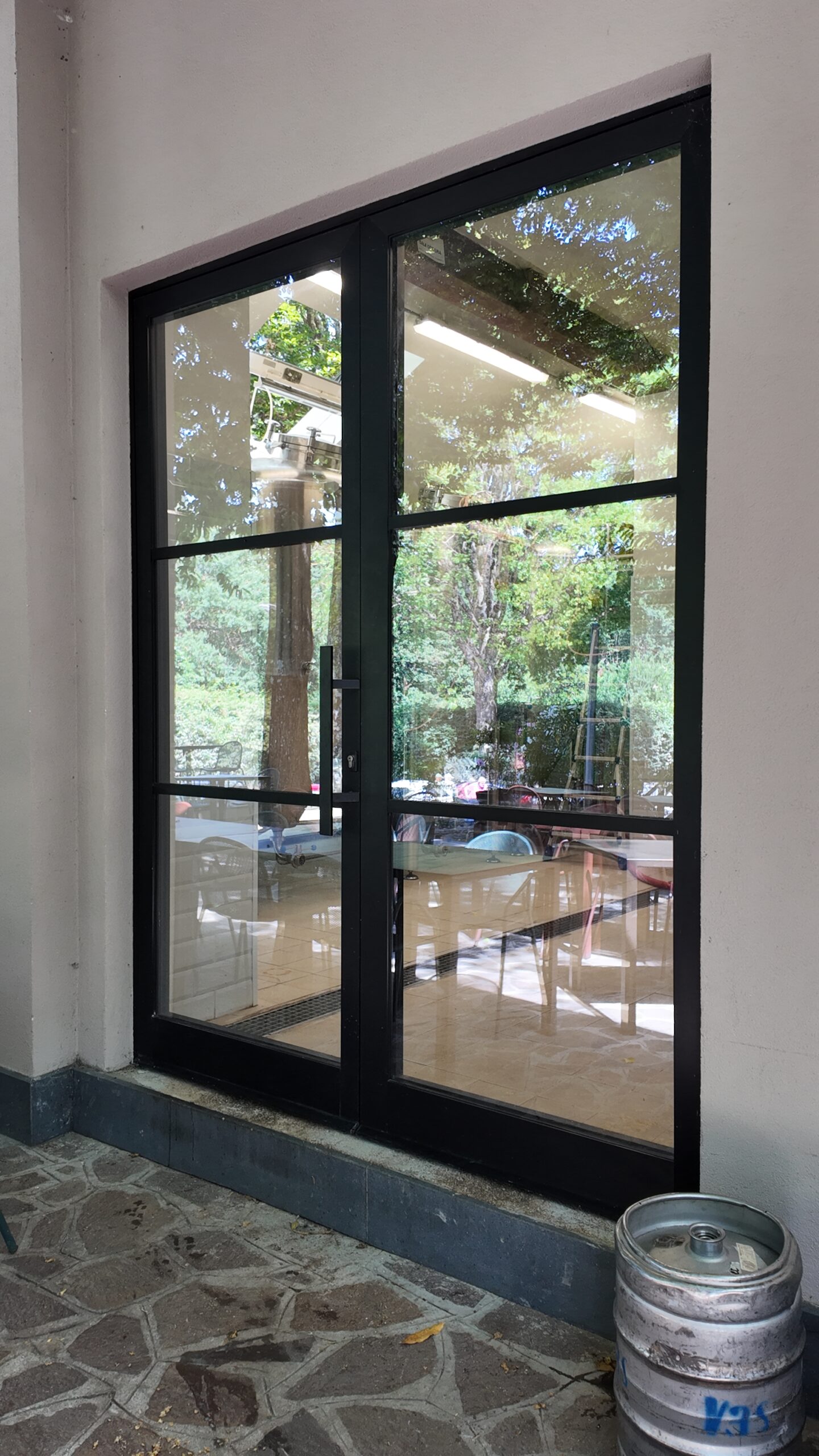

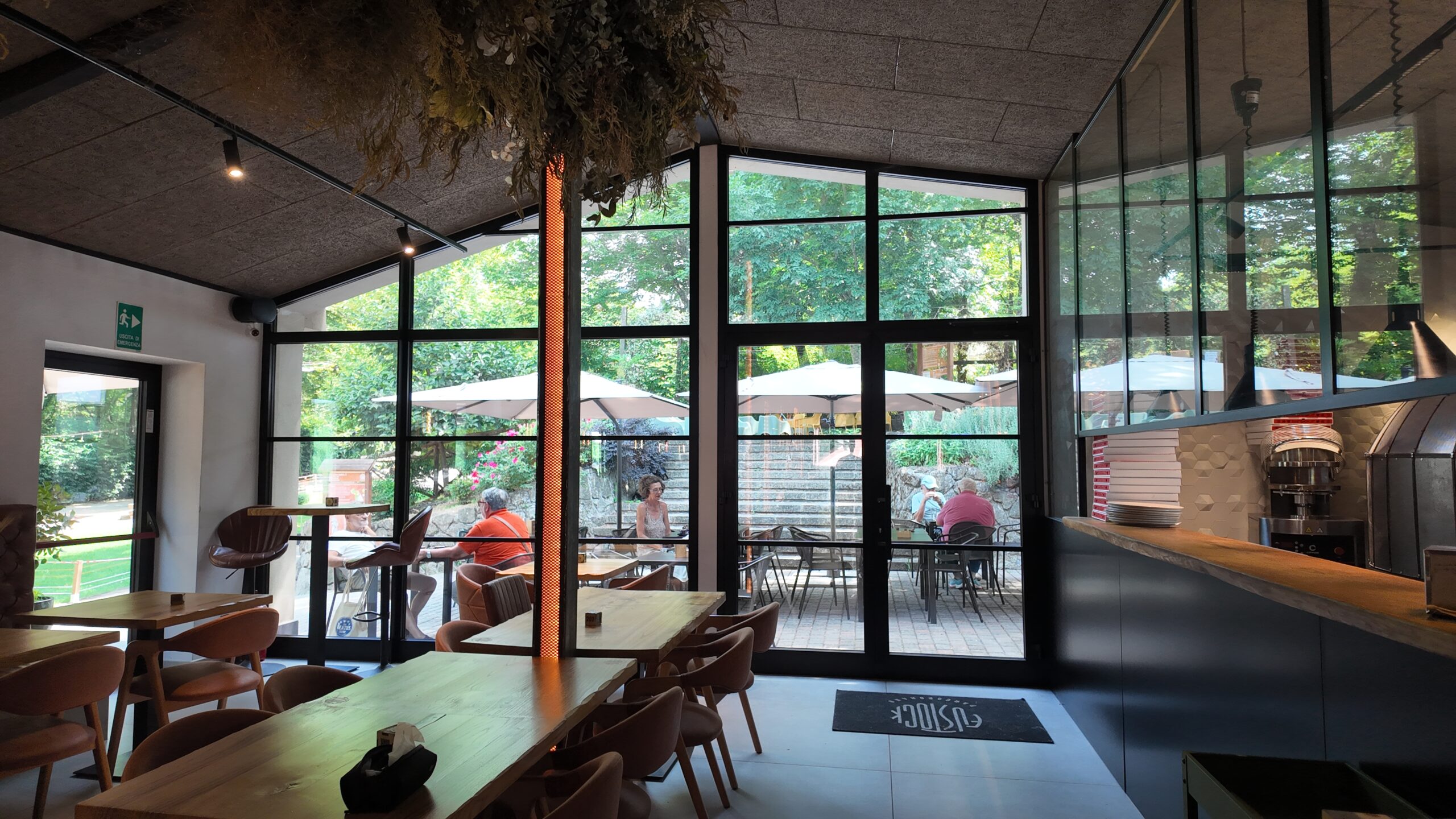

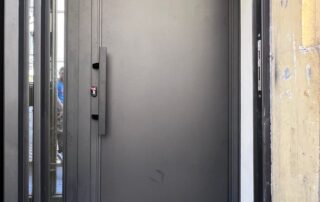

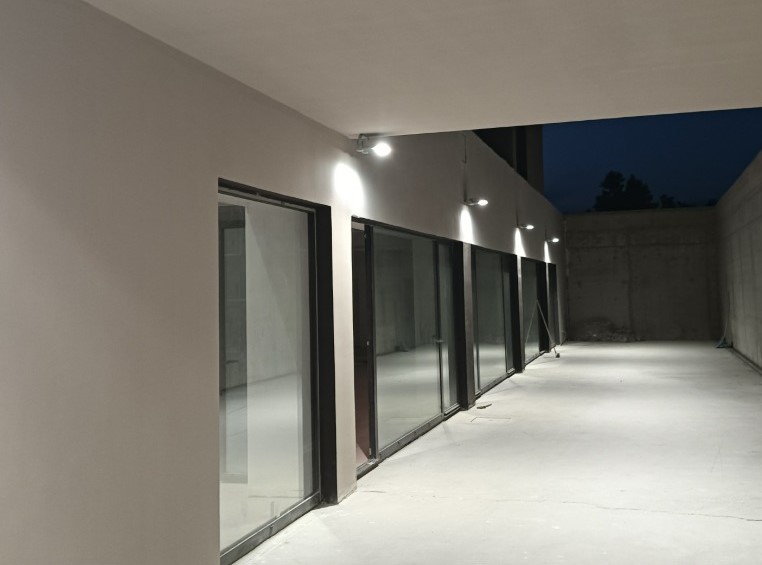

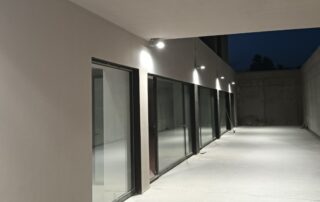

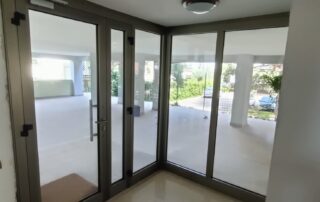

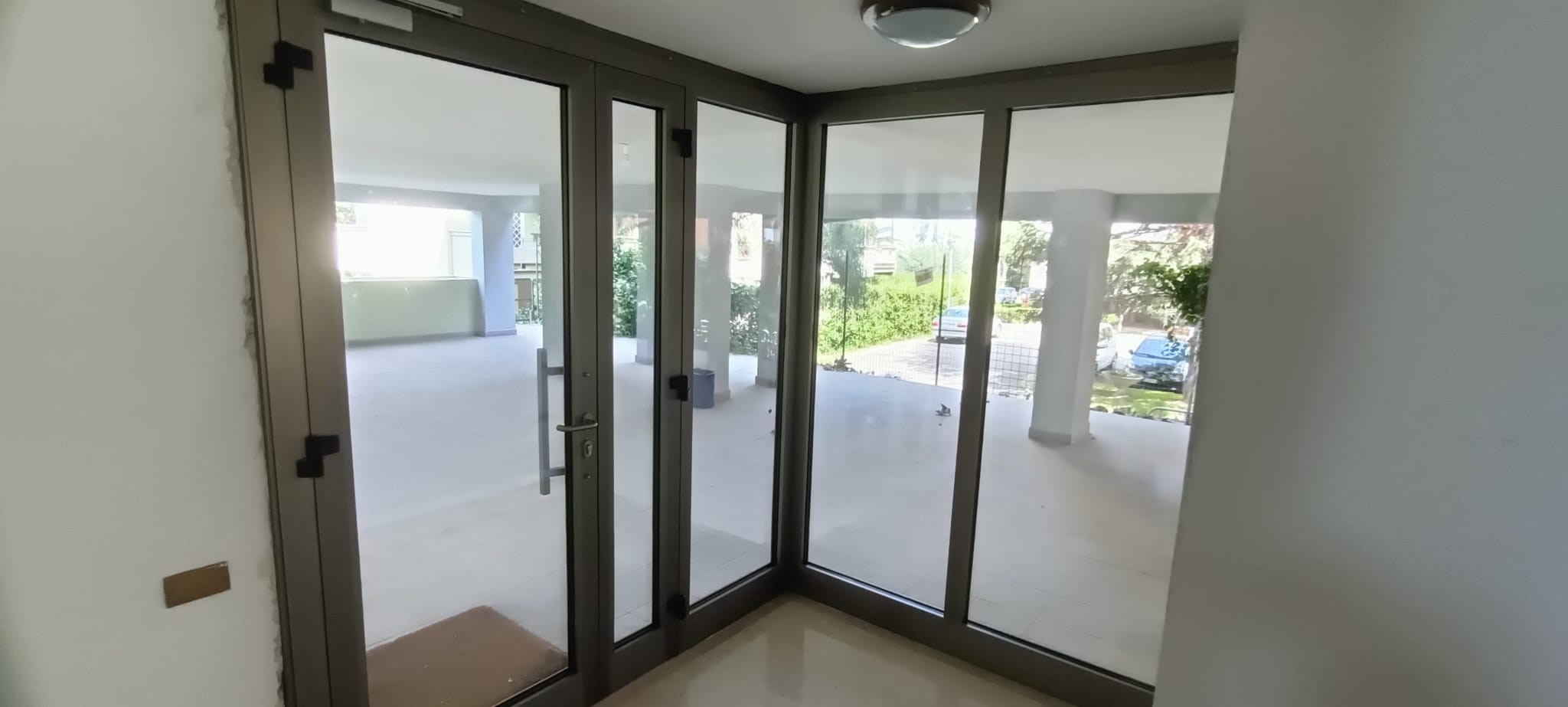

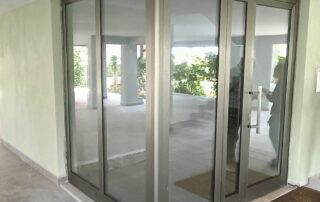

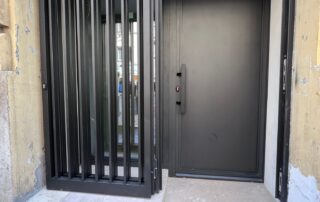

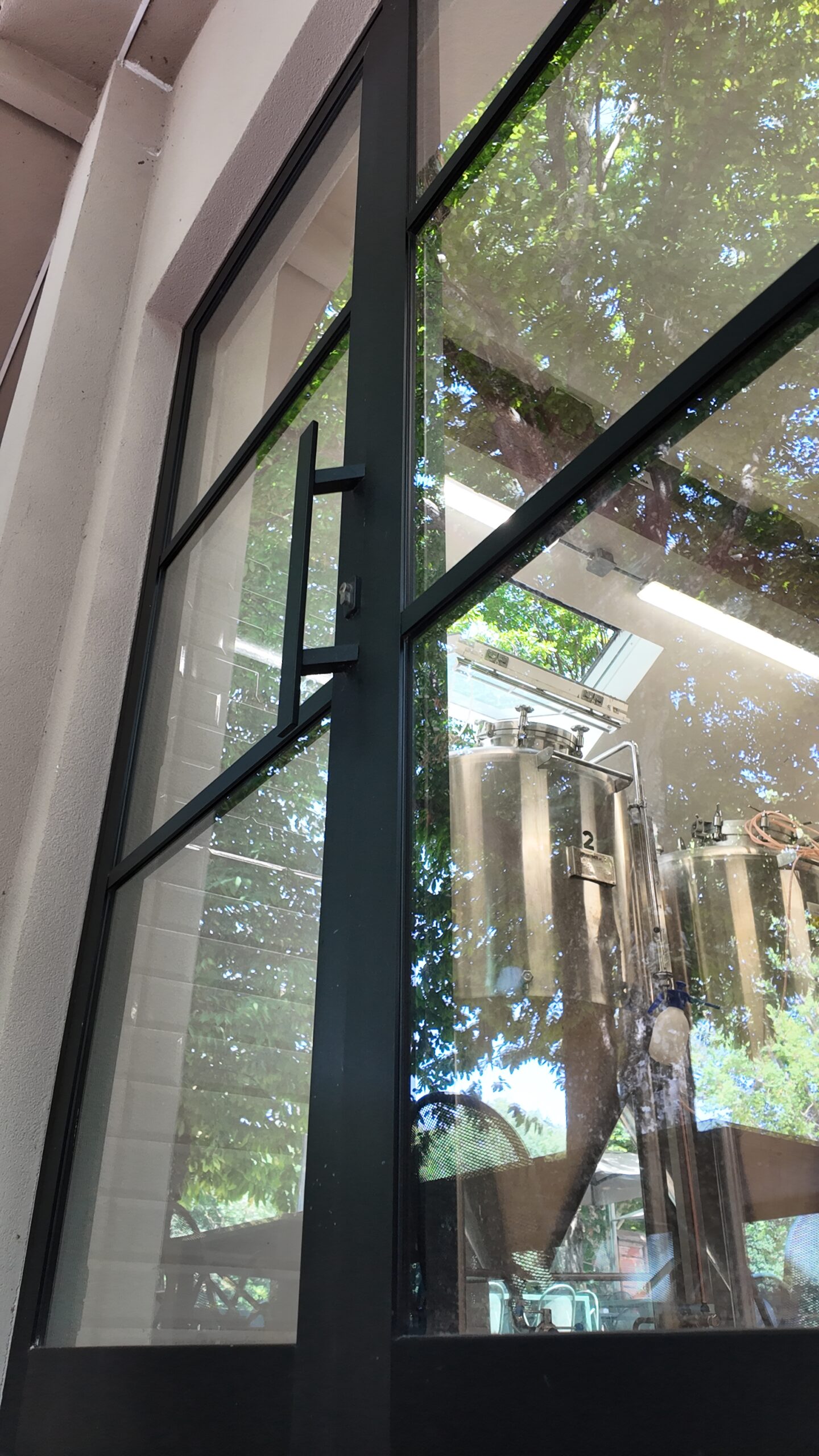

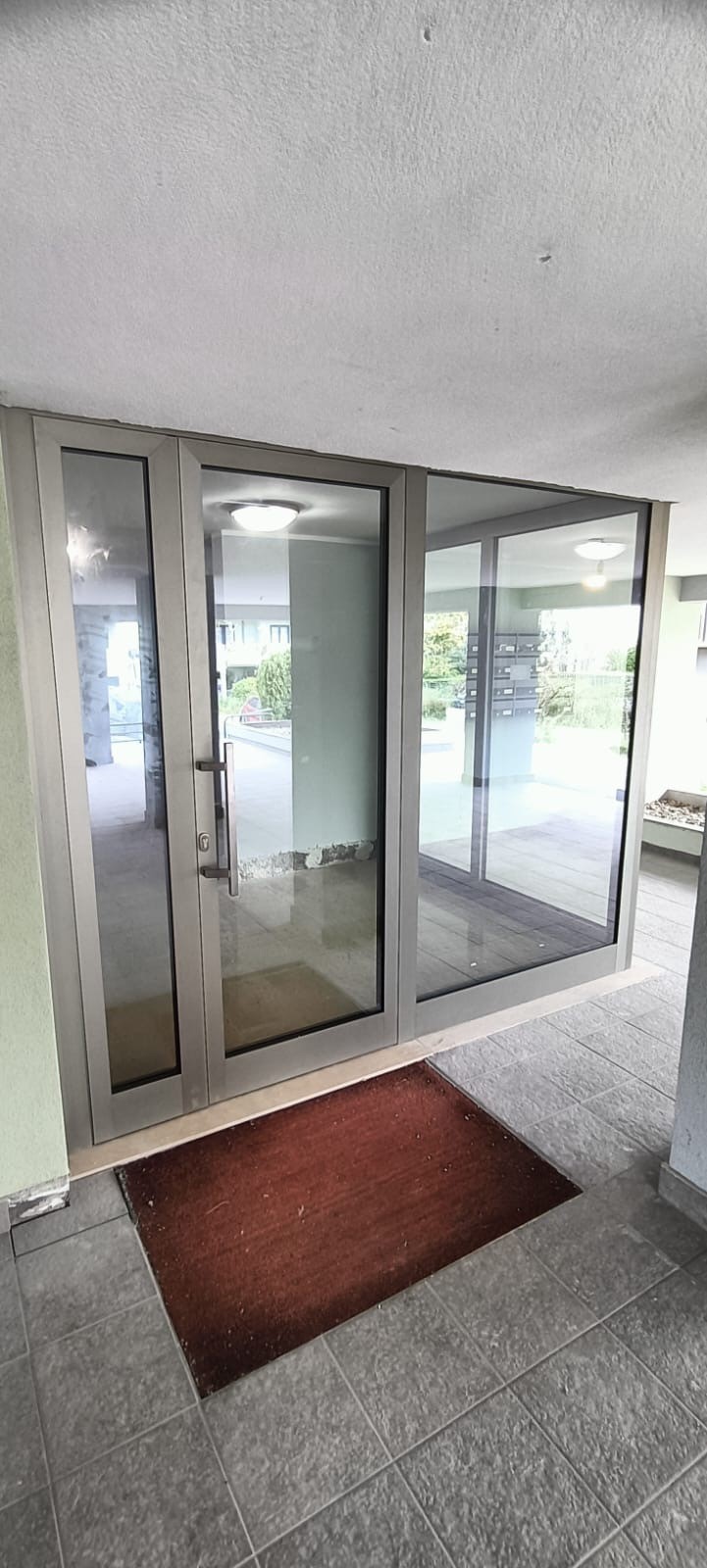

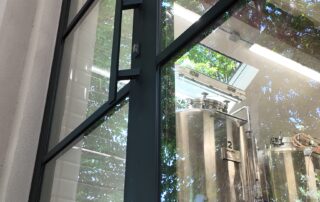

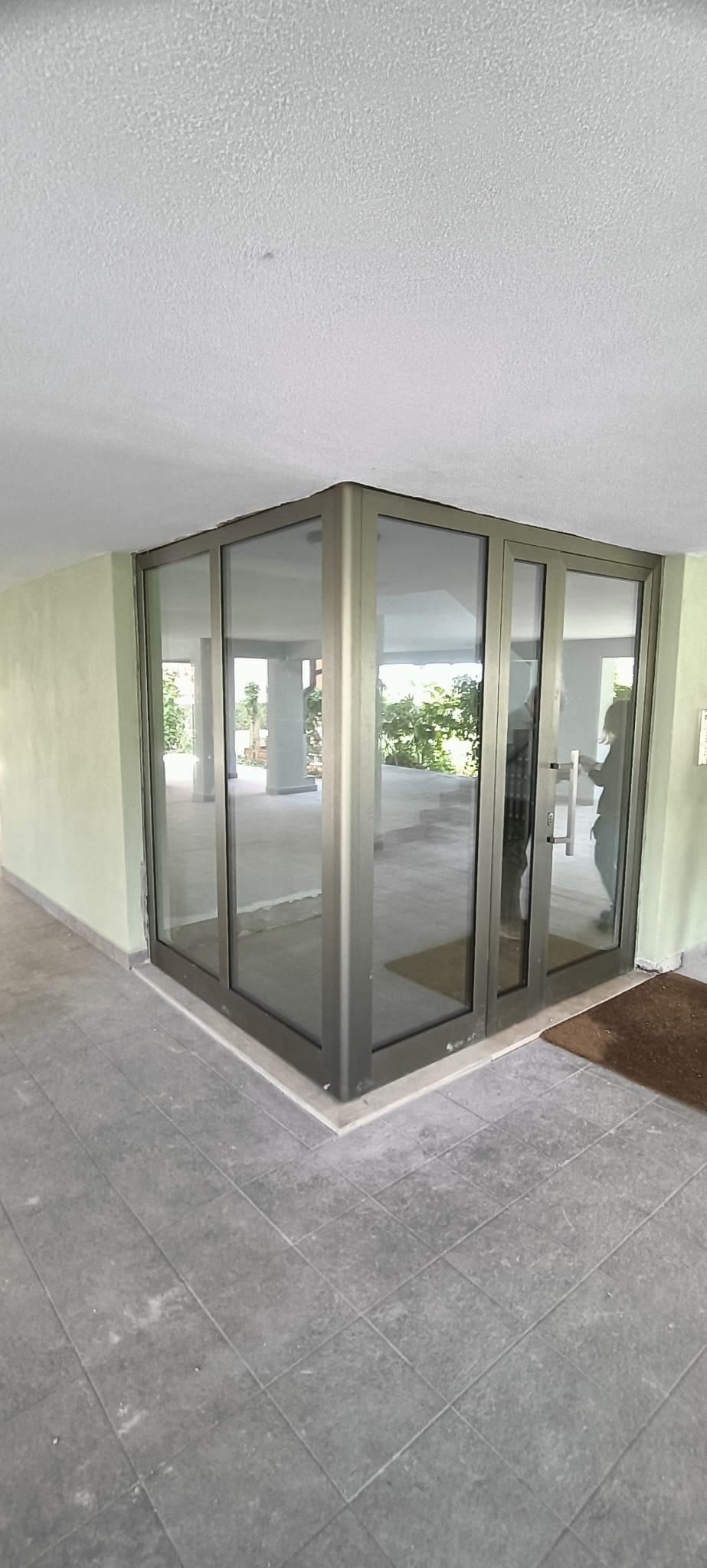

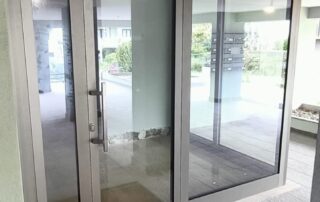

REALIZATIONS
